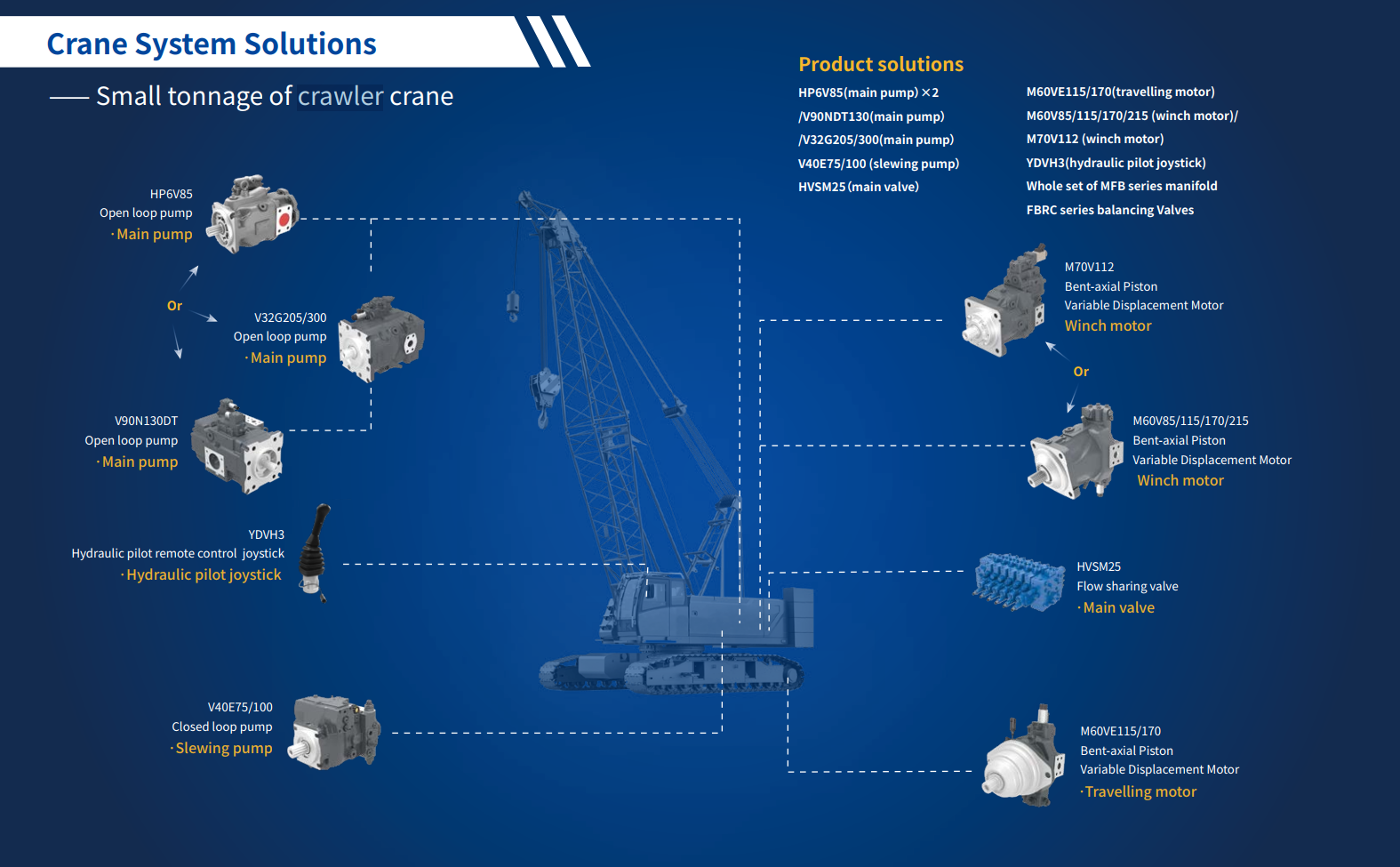

System Solution


FunctionalProduct ModelDocs
Main PumpHP6V85，V90N130-T , V32G205/300HP6V , V90N-T , V32G
Slewing Pump
V40E75/100V40E
Winch MotorM70V112，M60V85/115/170/215M70V ,M60V(E)
Walking MotorM60VE115/170M60V(E)
Main ValveHVSM25HVSM25(WL)
Hydraulic Pilot Joystick
YDVH3YDVH3
Balancing ValveFBRC Series Balancing ValvesFBRC
Hydraulic CylinderComplete Set of Hydraulic Cylinder



FunctionalProduct ModelDocs
Walking SystemWalking PumpV40E100/135 , V40G175V40E , V40G
Walking MotorM60V(E)170/215M60V(E)
Working SystemWinch PumpV40E100/135, V40G175V40E , V40G
Winch MotorM60V(E)170/215M60V(E)
Slewing PumpV40E100/135, V40G175
V40E , V40G
Electeic Pilot Joystick
RVEH2RVEH
Balancing ValveFBRC Series Balancing ValvesFBRC
Hydraulic CylinderComplete Set of Hydraulic Cylinder


Accessory Component

Product Advantage

- Piston Pump:

Open System:Small-tonnage HP5V medium-pressure pump can be used to improve the work efficiency through the matching of the main engine. At the same time, the spherical flow distribution technology is used to adapt to the high-speed impact conditions; Medium and large tonnage can choose V90N-T/P and V30G high-pressure pumps, and its heavy-duty design can well ensure the crane's requirements for safe and be reliable hoisting applications.
Medium and large tonnage can choose V90N-T/P and V30G high-pressure pumps, and its heavy-duty design can well ensure the crane's requirements for safe and be reliable hoisting applications.
