Specifications：75~300 cc/rev
Rated pressure：350~380 bar
Peak pressure：400~420 bar

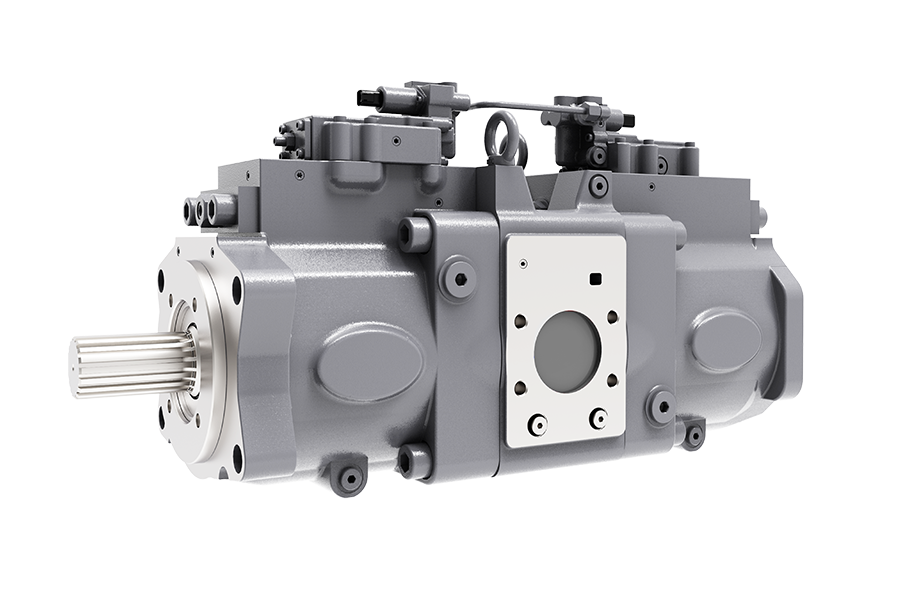

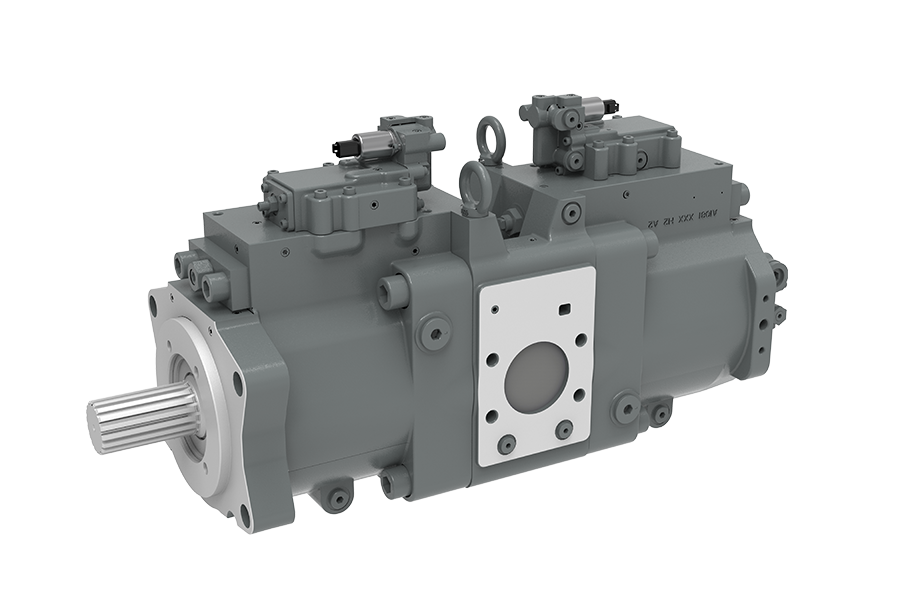

Variable axial piston double pump design for the open circuit.
Various controllers available: hydraulic and electrical control design available, which can combined the different controllers of flow control, pressure control and power control.
High working pressure (400 bar) and long lifetime.
High efficiency, excellent self-priming performance.
Special pump housing structure design meets the low noise requirements.
More suitable for mobile machinery like excavators, cranes, drilling rigs and so on.
| Size | V90N75T | V90N130T | V90N180T | V90N280T | V90N300T | |
| Displacement cc/rev | 75×2 | 130×2 | 180×2 | 280×2 | 300×2 | |
| Speed | Rated speed (rpm) | 2450 | 2200 | 2100 | 1800 | 1800 |
| Maximum speed (rpm) | 3000 | 2500 | 2400 | 2100 | 2100 | |
| Pressure | Rated pressure (bar) | 350 | 380 | 380 | 380 | 380 |
| Maximum pressure (bar) | 400 | 420 | 420 | 420 | 420 | |
Maximum torque (N.m) @Vgmax and Δp=380bar | 415 | 786 | 1120 | 3120 | 3120 | |
| Case volume (L) | 2.6 | 2.8 | 3.4 | 8 | 9 | |
| Suction port pressure (abs bar) | 0.7 ～ 2 | |||||
| Drain pressure (bar) | 1 | |||||
| Max. drain pressure (bar) | 3 | |||||
| Mass (Kg) | 95 | 166 | 174 | 300 | 310 | |
| Temperature range (℃ ) | -20 ～ 95 | |||||
| Hydraulic fluid viscosity range (mm2/s） | 10 ～ 1000 (optimum viscosity range 16 ～ 36） | |||||
