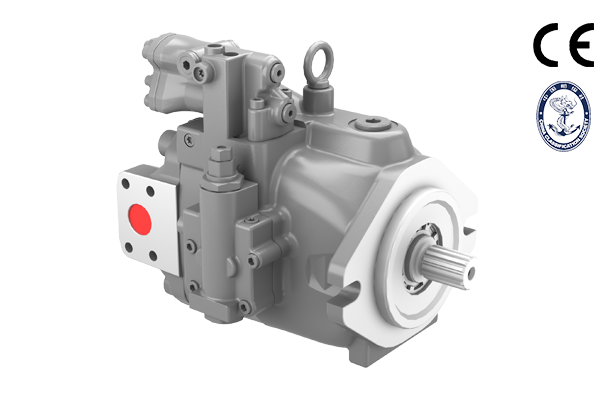

HP6V Series Swash-plate Type Axial Piston Variable Displacement Pump-Hengli Hydraulics

Online message

If you have any needs, please leave a message and we will contact you as soon as possible。

Series of pictures

Applied to high-voltage open-loop systems, it adopts a specially designed new power structure with a smaller size and stronger anti-pollution ability.

Specifications: 18~105 cc/rev

Rated pressure: 300~350 bar

Peak pressure: 320~400 bar

Configure model/order number

Configured parameter：******

Open All | Close All

Serial Advantage

·Variable pump in swash-plate design for open circuit.

·High continuous pressure.

·Exceptional self-priming capability.

·Available with American (SAE) and Japanese (JIS) mounting flanges and shafts.

·Excellent reliability and long life.

·High power to weight ratio.

·Variety of control options.

·Optional through drive.

·Quick control response.

·Low pressure pulsation and low noise.

·Developed for engineering, mobile vehicles, industrial, other industrial application and agricultural machinery

Technical Specification

Size		18	28	35	47	65	76	85	105
Displacement (cc/rev )		18	28	35	47	65	76	85	104.3
Pressure	Rated pressure (bar）	300	300	300	320	320	320	320	350
Pressure	Peak pressure (bar）	320	320	320	350	350	350	350	400
Rotation speed	Max for self-priming*1 (rpm)	3300	3000	2850	2700	2600	2400	2400	2200
Rotation speed	Max*2 (rpm)	3900	3600	3400	3250	3140	3000	3000	2600
Weight (Kg)		15.9	17	18.7	21.5	25	28	33	45
Quantity of oil to fill pump case (L)		0.4	0.55	0.55	0.6	0.6	0.8	0.85	1
Temperature Range (℃ )		-20~100
Viscosity Range (mm2/s)		10-1000*3 (The best use of viscosity range 16~36 mm2/s)

Application Industry

Be mainly used in
