601100
Specification: 10
Pressure: up to 315 bar
Flow: up to 120 L/min

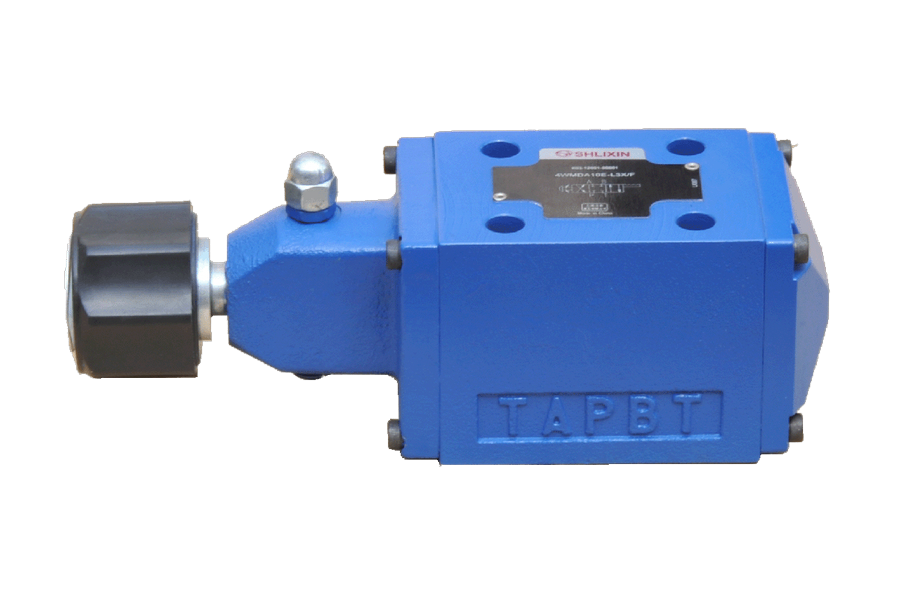

Direct acting directional slide valve
Plate mounting

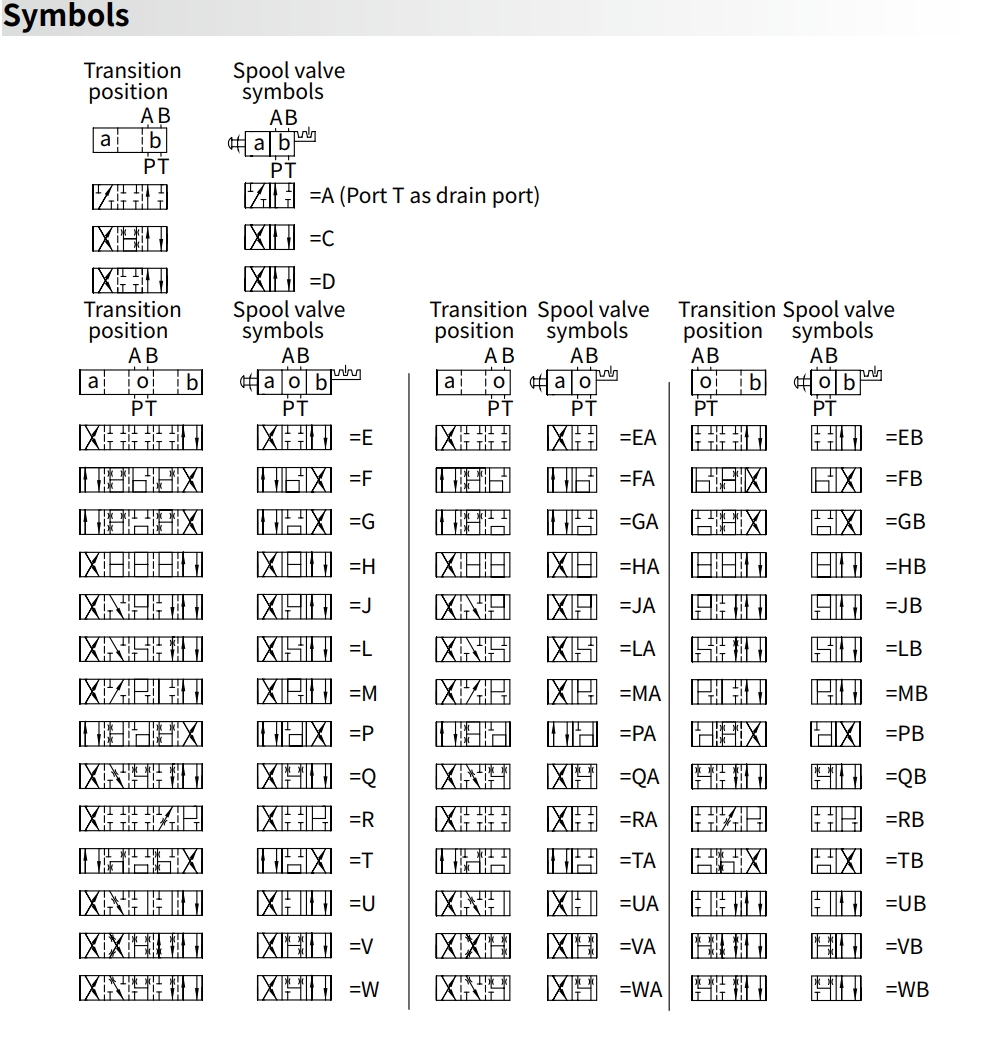

Choose from 45 standard spool types with or without lock knob
Mounting surface according to DIN 24340 Type A, ISO 4401
| Fluid temperature range | ℃ | -30 to +80 (NBR seals) | |
| -20 to +80 (FKM seals) | |||
| Port Max. operating pressure | Port A B P | bar | 315 |
| Port T | bar | 160 | |
| Max. flow-rate | L/min | 120 | |
| Flow cross section (switching neutral position) | V type | mm2 | 11(A/B → T);10.3(P → A/B) |
| W type | mm2 | 2.5(A/B → T) | |
| Q type | mm2 | 5.5(A/B → T) | |
| Fluid | Mineral oil; Phosphate ester | ||
| Viscosity range | mm2/s | 2.8 to 500 | |
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 | ||
| Weight | kg | 4.2 | |
