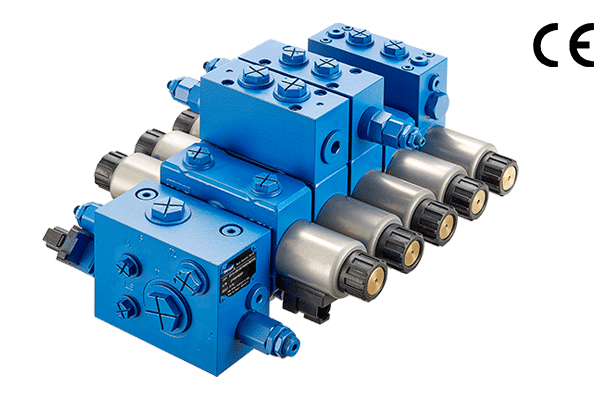

601100
· High efficiency
· Small size and light weight
· Accurate flow distribution
· Low pressure loss, saving fuel consumption
· Fast response speed
EHV06
• 效率高
• 体积小，重量轻
• 精确的流量分配
• 压损低，节省油耗
• 响应速度快
EHV09/09S/18
• 操作协调性高，效率高
• 结构紧凑，重量轻
• 精确的控制，微动性好
• 压损小，油耗低
• 舒适的操纵性
| Nominal size | EHV06 | EHV09P | EHV09S | EHV18 | |
| General | |||||
| Structure | Stackable, load sensing, post pressure compensated | Stackable, proportional, load sensing, pre-compensated | |||
| Type of connection | ISO BSP thread, metric thread | ISO1179-1 | JISB2351-1 | ||
| Mass (kg) | Inlet element | 4.27/5.3 | 3.4 | 9.2 | |
| Middle section -General | 3.5 | / | / | / | |
| Middle section -With relief valve | 5.58 | / | / | / | |
| Middle section -With hydraulic operated check valve | 4.86 | / | / | / | |
| Middle section hydraulic operation | / | 2.7 | 3.4 | 7.5 | |
| Middle section E-H operation | / | 3.3 | 2.9 | 7.8 | |
| End element | 0.27 | 3.2 | 5.7 | ||
| Hydraulic | |||||
| Nominal size | 6 | 9P | 09S | 18 | |
| Rated flow | Q (L/min) | 60 | 90 (ΔP=15bar） | 90 (ΔP=15bar） | 180 (ΔP=15bar） |
| Rated operating pressure at port | P /LS (bar) | 310 | / | / | / |
| A/B (bar) | 310 | / | / | / | |
| Max. operating pressure at port | P /LS (bar) | / | 280 | 280 | 320 |
| A/B (bar) | / | 340 | 320 | 340 | |
| T (bar) | / | 30 | |||
| TS (bar） | / | Less than 2 | |||
| Pilot pressure | a/b (bar) | / | Less than 35 | ||
| X (bar) | / | 30 | |||
| Electricity | |||||
| ·Electrical on/off： | ·Connection: Deutsch DT04-2P | ||||
| ·Protection class: IP69k·Supply voltage: 12 or 24VDC | |||||
| ·Electrical proportional： | ·Dither frequency required: 120Hz | Electrical proportional： | |||
| ·Hysteresis: Less than 3% | ·Dither frequency required: 100-200Hz | ||||
| ·Connection: Deutsch DT04-2P | ·Connection: Deutsch DT04-2P/AMP Junior-Timer | ||||
| ·Protection class: IP69k | ·Protection class: IP69k | ||||
| ·Control current @12VDC: 0~1800mA, @24VDC: 0~1200mA | ·Control current @12VDC：0~1500mA; @24VDC：0~750mA | ||||
| Using environment | |||||
| Hydraulic fluid | Mineral oil (HL, HLP) according to DIN 51524.Other hydraulic fluids, such as HEES (Synthetic Ester) according to VDMA 24568. | ||||
| Hydraulic fluid temperature range (℃） | -20 ~ +80 | -20 ~ +90 | |||
| Viscosity range ν (mm2/s） | 10 ~ 380 | ||||
| Maximum permissible degree of contamination of the pressure fluid cleanliness class to ISO 4406 (C) | Class 20/18/15, we therefore recommend a filter with a minimum retention rate of β10 ≥ 70 | Class 20/18/15, we therefore recommend a filter with a minimum retention rate of β10 ≥ 75 | |||
