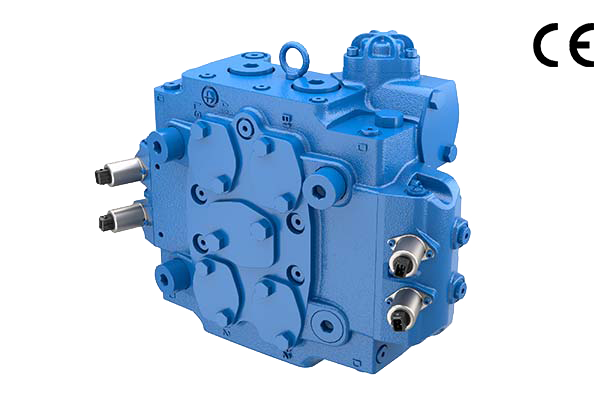

601100
· High efficiency
· Precise flow control
· Low pressure loss, saving fuel consumption
· Good control
• 效率高
• 精准的流量控制
• 压损低，节省油耗
• 操控性好
| General | |||
| Structure | Monoblock，Load sensing | ||
| Port | Inlet port P | SAE 1 1/4" -H（ISO 6162) | M14 |
| Work port A1, B1, A2, B2 | SAE 1" -H(ISO 6162) | M12 | |
| Tank port T | SAE 1 1/2" -S（ISO 6162） | M12 | |
| Pilot inlet port PS Pilot tank port D | M14x1.5（ISO-9974-1） | ||
| Port LS | M14x1.5（ISO-9974-1） | ||
| Pressure measurement port MA1,MB1,MA2,MB2 | M14x1.5（ISO-9974-1） | ||
| Additional inlet port AP Pressure measurement port MT | 3/4-16 UNF | ||
| Additional port AA2,AB2 | 1 1/16-12 UN | ||
| Weight kg | 95 | ||
| Hydraulic | |||
| pressure | Inlet port | P(bar) | 375 |
| Work port | A/B(bar) | 400 | |
| Tank port | T(bar) | 20 | |
| Drain line pressure | D(bar) | 1 | |
| Flow | From inlet to working port | l/min | 500 |
| From working port to tank | l/min | 1000 | |
| Electric | |||
| · Electrical on/of： ·Connection：Deutsch DT04-2P ·Protection class： IP69k ··Supply voltage：12 or 24VDC | ·Electrical proportional： ·Dither frequency required：100-200Hz ·Hysteresis: Less than 3%(at valid range) ·Connection：Deutsch DT04-2P/AMP Junior Timer ·Protection class：IP69k ·Control current @12VDC：0~1500mA; @24VDC：0~750mA | ||
| Using environment | |||
| Hydraulic fluid | Mineral oil (HL, HLP) according to DIN 51524. Other hydraulic fluids, such as HEES (Synthetic Ester) according to VDMA 24568. | ||
| Pressure fluid temperature range (℃） | 20 ~ 90 | ||
| Viscosity range ν (mm2/s） | 15 ~ 380 | ||
| Maximum permissible degree of contamination of the pressure fluid cleanliness class to ISO 4406 (C) | Class 20/18/15, we therefore recommend a filter with a minimum retention rate of β10 ≥ 75 | ||
