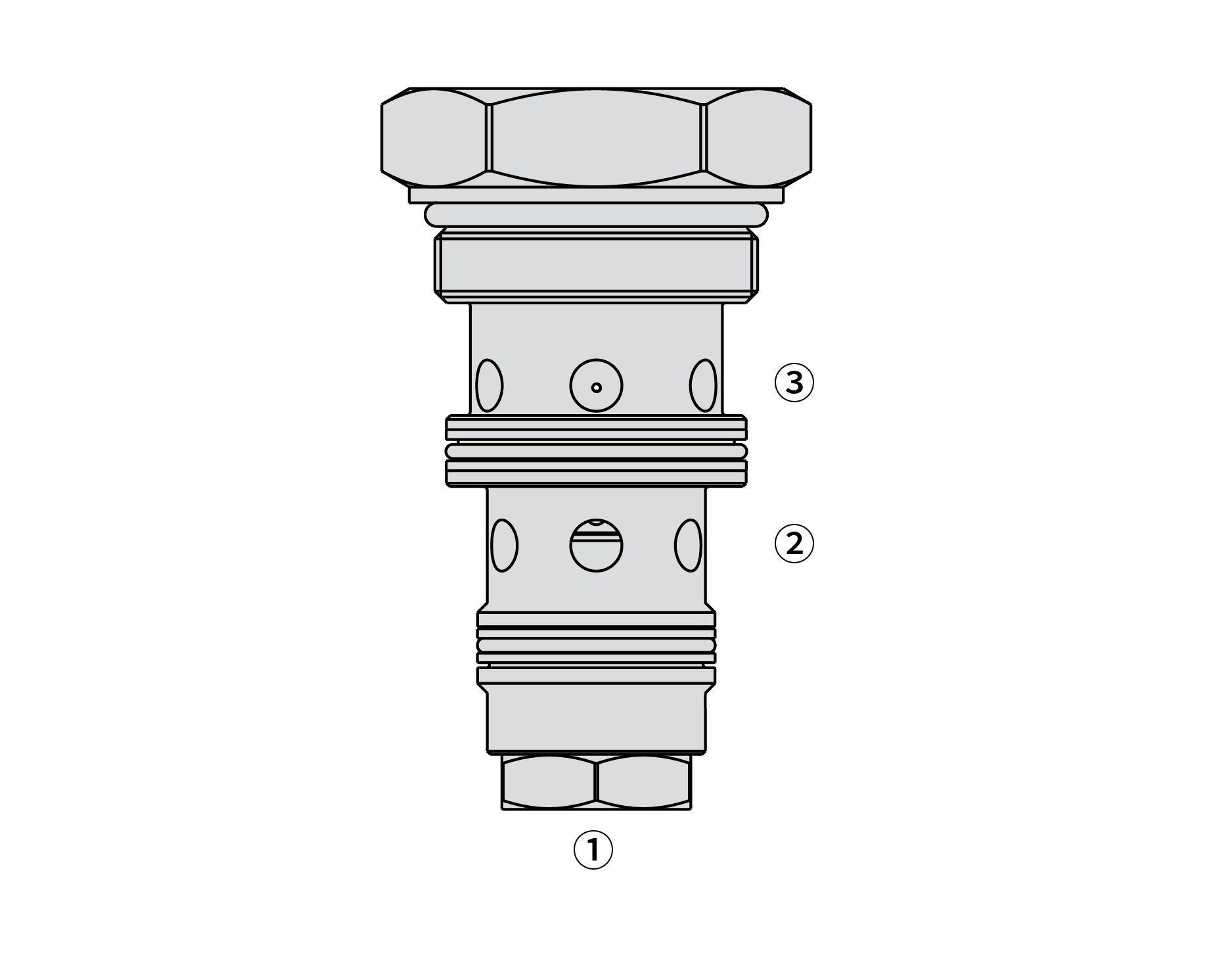

50PC20-30L TYPE Hydraulic Check Valve

Series of pictures

Threaded plug-in type, a check valve for use in blocking or load-holding circuits.

Rated pressure (bar / psi) : 350 / 5000

Peak flow (L/min / gpm) : 80 / 21.1

Cavity: See cavity dimensions

Configure model/order number

***********
Copy to clipboard
Configured parameter:******
Open All | Close All

Serial Advantage

  • Hardened parts for long lifeand low leakage

  • Optional sealed piston

  • High working pressure ·Compact size

Technical Specification

Rated   pressure350 bar (5075 psi)
Peak flow80L/min (21.1 gpm)
Internal   leakage≤ 5 drops/min @ 350 bar
Pilot   ratio3:1
Crack   pressure2.1 bar (30 psi)
CavitySee cavity dimensions
FluidMineral-based or synthetics with   lubricating properties
Viscosity   range7.4 to 420 mm2/s
Temperature   range-40 to 100 ℃ (Buna N seals)
-26 to   204 ℃ (Fluorocarbon seals)
Degree of   fluid contaminationThe minimum pollution level is   ISO4406 level 20/18/14, and level
    17/15/13 is recommended to prolong the service life
