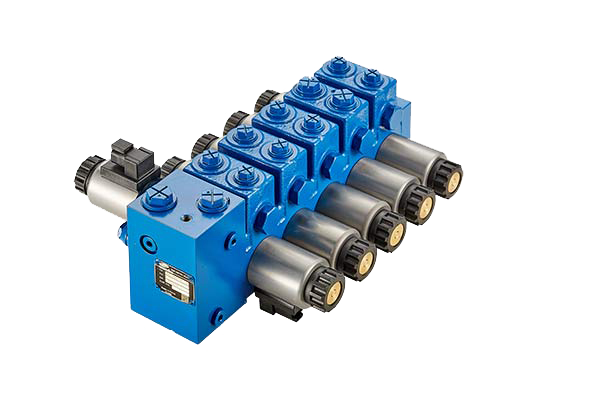

601100
• High efficiency
• Small size and light weight
• Low pressure loss to save fuel consumption
• Good control
• 效率高
• 体积小，重量轻
• 压损低，节省油耗
• 控制性好
| General | ||
| Structure | Stackable design | |
| Nominal size | 08 | |
| Type of connection | ISO 1179/ISO6149 | |
| Mass (kg) | Inlet element | 4.2/6.3 |
| Middle Section -General | 2.8 | |
| Middle section -With hydraulic operated check valve | 3.2 | |
| End element | 0.6/0.8 | |
| Hydraulic | ||
| Max. flow | Q (L/min) | 80 |
| Max. working pressure at port | P/LS (bar) | 310 |
| A/B (bar) | 310 | |
| Electricity | ||
| Electrical on/off or electrical proportional: ·Connection: Deutsch DT04-2P ·Protection class: IP69k ·Supply voltage: 12 or 24VDC | ||
| Using Environment | ||
| Hydraulic fluid | (HL, HLP) according to DIN51 524 standard; hydraulic oil HEES (synthetic alcohol) according to VDMA24568 standard | |
| Hydraulic fluid temperature range (℃） | -20 ~ +80 | |
| Viscosity range ν (mm2/s） | 10 ~ 380 | |
| Maximum pollution degree of hydraulic oil, Conform to ISO 4406(c) cleanliness level | Level 20/18/15, recommend to use a filter with an element filtration ratio β10 ≥ 75 | |
