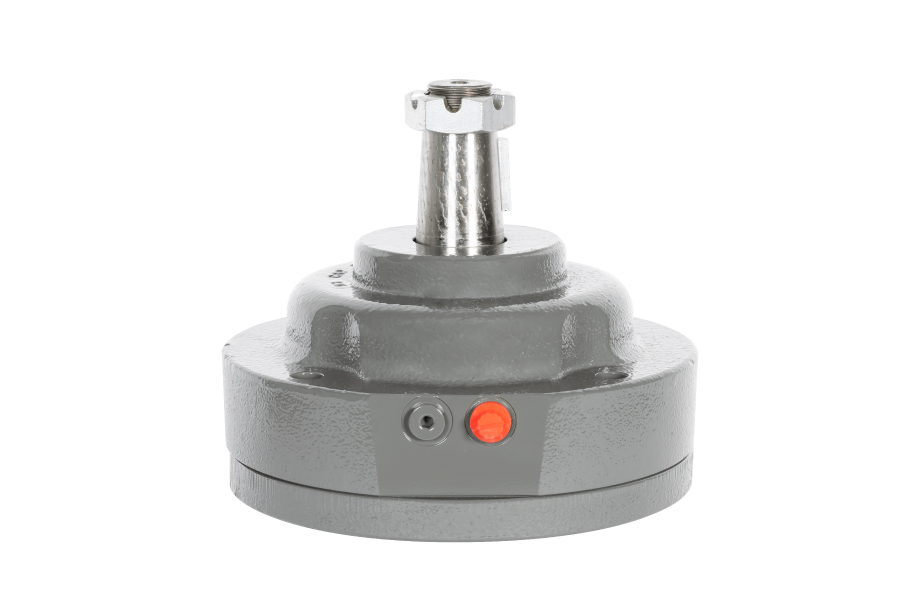

HBK Series Hydraulic Brakes

Series of pictures

It is a normally closed wet static hydraulic brake that uses the action of a spring bank to generate braking force and the brake is released by working oil pressure.

Min.static torque: 1150/1500
Maximum speed: 250 rpm
Max.release pressure: 250 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get CAD

Open All | Close All

Serial Advantage

The combination of roller bearings and needle roller bearings provides a high load capacity
It adopts a unique friction material and high-strength spring design, which has a long service life and high braking reliability
To further extend service life and reduce noise, all core components are immersed in oil

Technical Specification

Type	HBK1150	HBK1500
Min. static torque Nm	1150	1500
Brake release pressure bar	28
Max. bearing capacity bar	250
Min. amount of brake release oil cm³	11.5
Max. speed rpm	250
Volume of lubricating oil in brake cavity cm³	180
Max. working oil temperature ℃	82
Weight kg	16.1	17.2

Application Industry

Be mainly used in Material Handling

Aerial Work Platform
