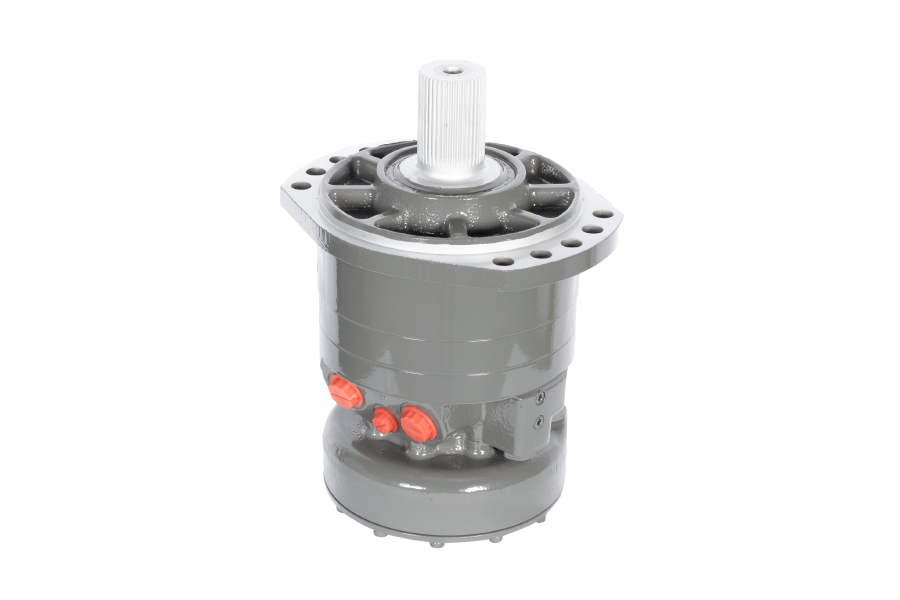

HRP03 Series Radial Piston Hydraulic Motor

Series of pictures

The utility model relates to a low-speed and high-torque hydraulic motor with multi-action internal curves and radial plunger, which adopts end-face flow distribution and can be equipped with various functional modules.

Displacement: 225/255/400cc/rev
Max.differential pressure: 450 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Catalog Get CAD

Open All | Close All

Serial Advantage

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as flushing valve, brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical Specification

Series			HRP03
Motor performance
Displacement		cm³/rev.	225	255	400
Max.torque		Nm	1450	1640	2290
Min.stable speed		rpm	5
Max.speed	Displacement	rpm	475	420	270
	Variable displacement	rpm	620	550	350
Pressure	Max.differential pressure	bar	450		400
Brake
Minimum static torque		Nm	2200
Release pressure		bar	11 ～ 15
Maximum pressure at brake port Z		bar	30
Oil volume to operate brake		cm³	23

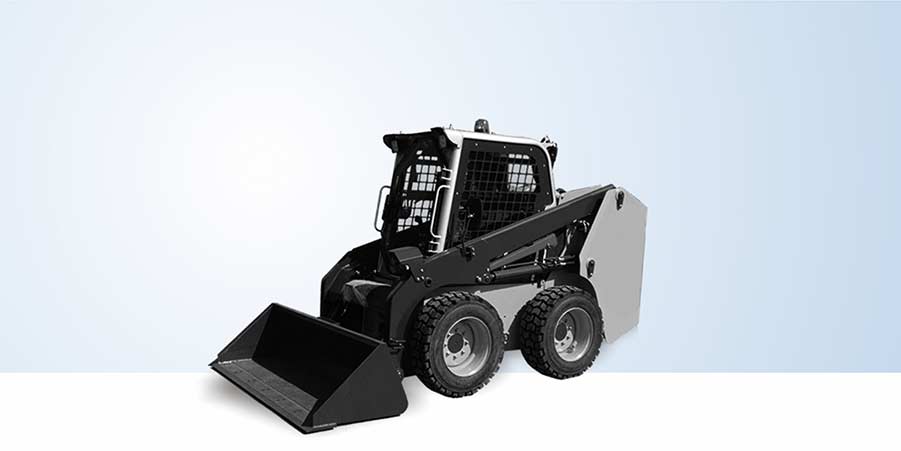

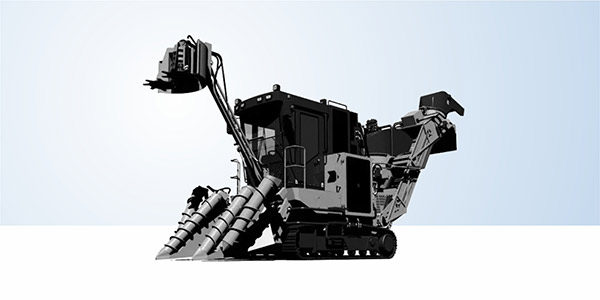

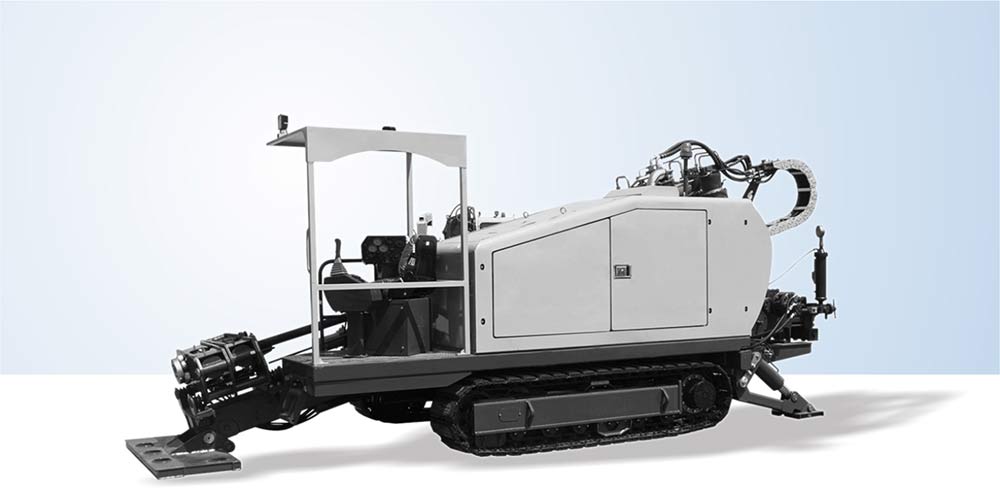

Application Industry

Be mainly used in
