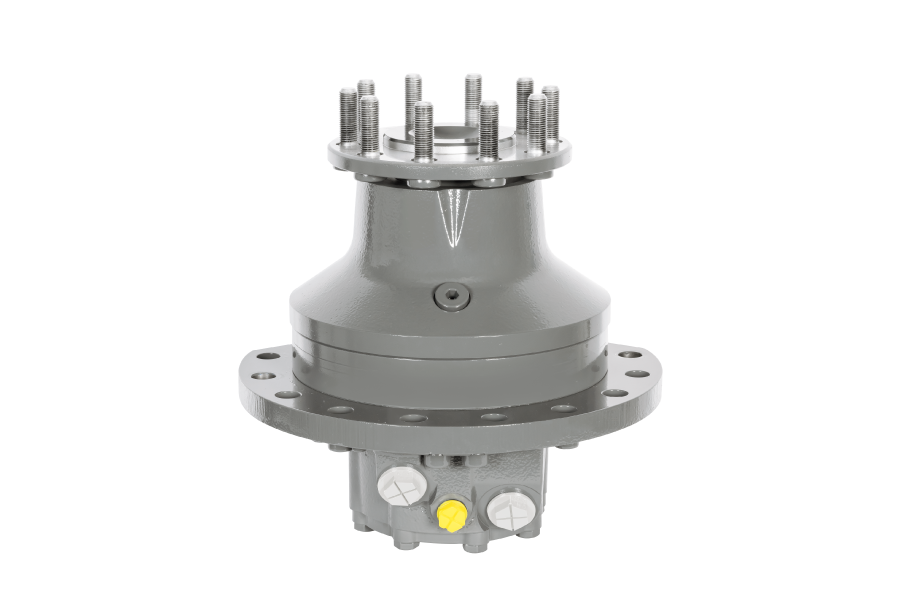

HRP5D Series Radial Piston Hydraulic Motor

Series of pictures

A low-speed high torque hydraulic motor with internal curve multi acting radial piston, which adopts end face flow distribution and can be equipped with multiple functional modules.

Displacement: 470/520/565/620/680/750 cc/rev
Max.differential pressure: 450/400bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get CAD

Open All | Close All

Serial Advantage

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical Specification

Series			HRP5D
Motor performance
Displacement		cm3/rev.	470	520	565	620	680	750
Max.torque		Nm	3030	3346	3635	3550	3900	4300
Min.stable speed		rpm	5
Max.speed (Displacement)		rpm	385	350	180	350	170	220
Pressure	Max.differential pressure	bar	450			400
Brake
Minimum static torque		Nm	4200
Release pressure		bar	12-16
Maximum pressure at brake port Z		bar	40
Oil volume to operate brake		cm3	32
