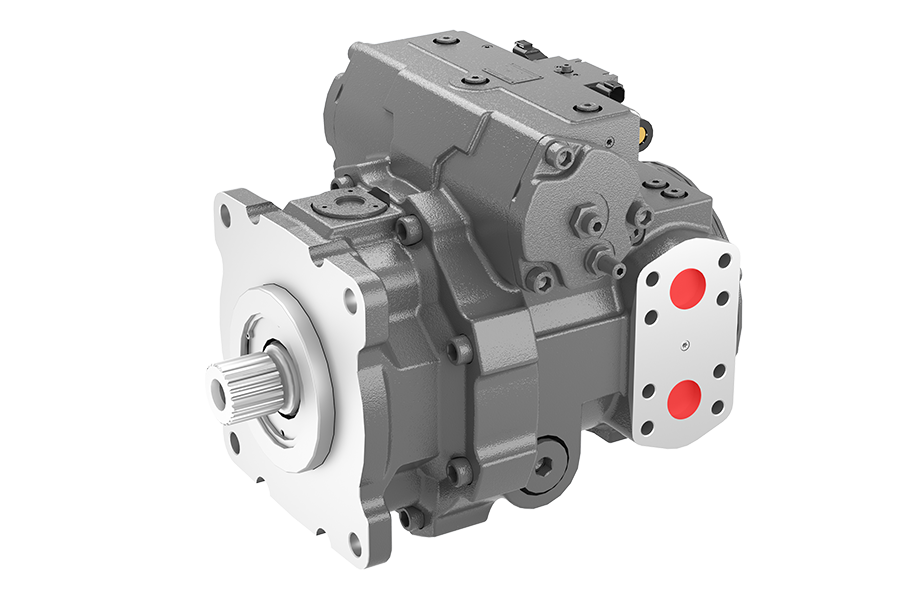

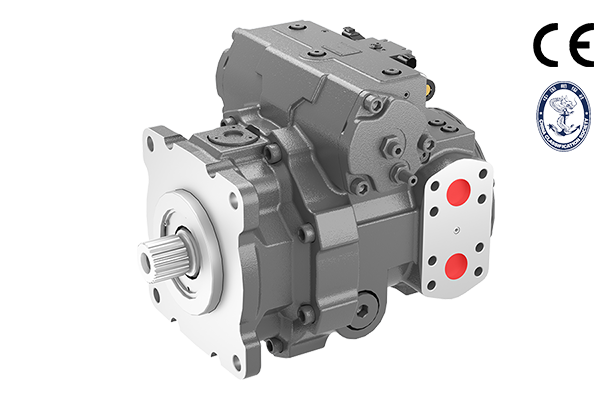

V40G Series Axial Piston Pumps

Swash plate design axial piston variable pump for closed-loop hydrostatic transmission

As the swash plate passes through the center, the direction of the hydraulic oil flow changes smoothly

Two pressure relief valves are installed on the high-pressure side to prevent overloading

The built-in make-up pump acts as a make-up pump and control pump

The maximum make-up pressure is limited by the built-in low-pressure relief valve

New slewing components and bearings for improved transmission efficiency and higher input speed

The V40G pump features a one-piece housing and back cover design to reduce leakage points

Optimized housing design for vibration and noise reduction

Electrical proportional displacement control to meet the requirements of multi-industry applications

A variety of oil outlet connection methods to optimize the pipeline connection

An optional flushometer can be installed directly on the pump body
