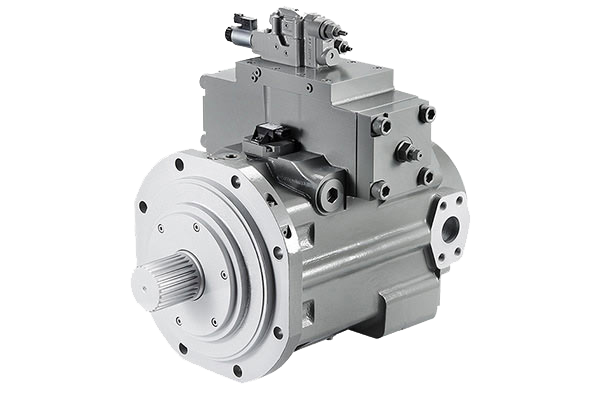

V30D Variable displacement axial piston pump

Series of pictures

The latest knowledge and experience with regard to noise reduction has been used in the development of this pump design. V30D is therefore rather quiet, even when taken to the limit. All components used in the V30D are manufactured from high grade materials and machined with close tolerances.

Specifications：45~520 cc/rev
Rated pressure：250~400 bar
Peak pressure：300~450 bar

Configure model/order number

***********
Copy to clipboard
Configured parameter：******
Add to cart Download Catalog Get 3D/2D drawings
Open All | Close All

Serial Advantage

  • Suitable for open circuits

  • Low noise

  • Multiple control modules to choose from

  • Sufficient torque for the rear pump when a tandem pump is required


Technical Specification

specificationDisplacement  cc/revPressure barRotational speed r/min
ratedpeakSelf-priming is the highestHighest pressurization
 V30D454535042026003600
 V30D757535042024003200
 V30D959635042022002900
 V30D11511525030020002800
 V30D14014235042022002600
 V30D16016425030019002500
 V30D25025035042018002000
V30D52052042045015001800

Note: Please contact us to order a 520 displacement pump.

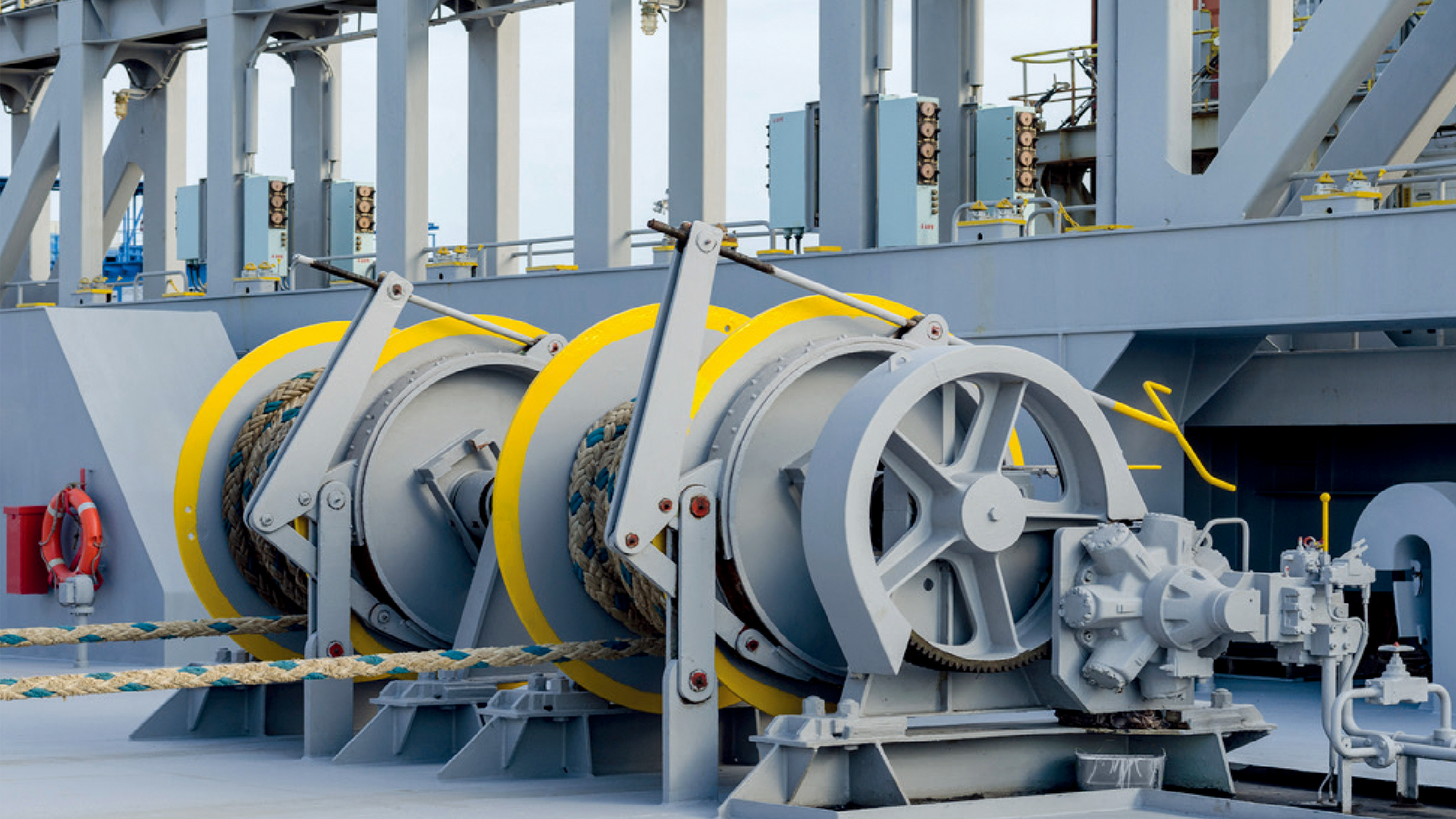

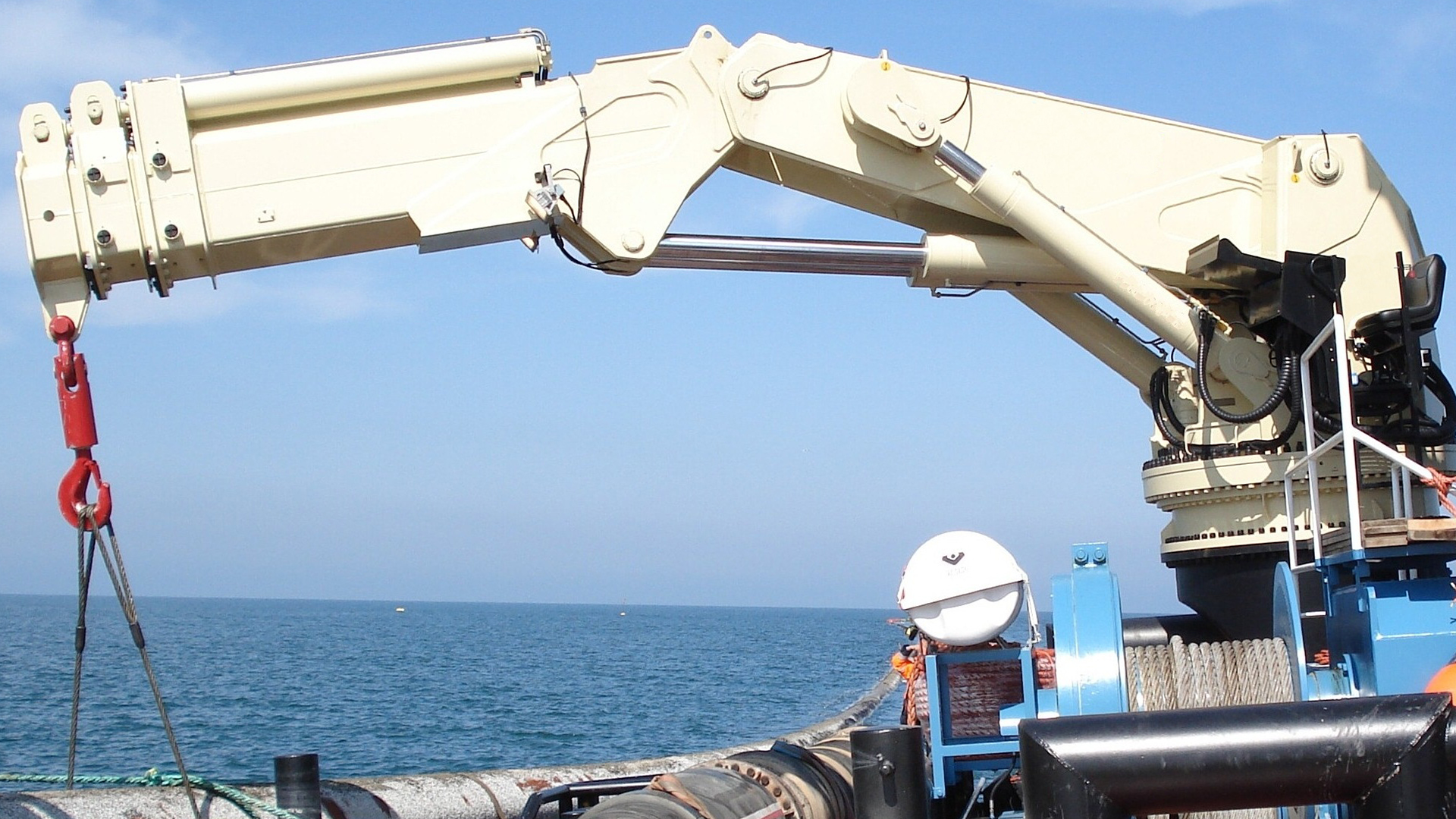

Application Industry

Be mainly used in
